Twist this dimmer back and forth to control your circuit. As you twist the knob clockwise, more signal goes to the Bits that follow, brightening lights, speeding up motors, or raising the volume on buzzers.
You know what a button is! It’s a classic: big, round, and springy. Push to turn your creation on, and release to turn it off. Snap a buzzer in place after your button to sound out signals in morse code!
The bend sensor turns on as you flex the long strip. To send signal to your output Bits, bend the strip down, towards the Bit's feet. But make sure not to crease it - that could damage your Bit! Try it with a bargraph to test its sensitivity.
With this Bit, you can control your circuits with motion. The motion trigger is similar to the sensor on an automatic door: when someone is moving nearby, it sends an ON signal to the following Bits. It's very sensitive, so don't move a muscle unless you want to be detected! Try it with some LEDs to create a security light.
With this Bit, you can control your circuits with motion. The motion trigger is similar to the sensor on an automatic door: when someone is moving nearby, it sends an ON signal to the following Bits. It's very sensitive, so don't move a muscle unless you want to be detected! Try it with some LEDs to create a security light.
Think of the threshold as a toll booth. When the signal passing through a circuit reaches it, the threshold decides whether or not it can continue. Use it to make any sensor Bit (like a temperature sensor) into a trigger Bit!
Use this Bit to control your circuits with movement. The accelerometer senses how quickly you speed it up or slow it down. Snap it to a bargraph on a mounting board. Then give it a wave to visualize your movements.
Use this Bit to control your circuits with light. The amount of light shining on the sensor will change how your circuit behaves. It's a great way to activate your circuit without hands, and is perfect for alarms!
The slide dimmer functions just like a light dimmer you might find at home, or a volume fader in a recording studio. You control the slide dimmer Bit by moving its lever from one end of the Bit to the other. Follow it with an LED for some adjustable mood lighting.

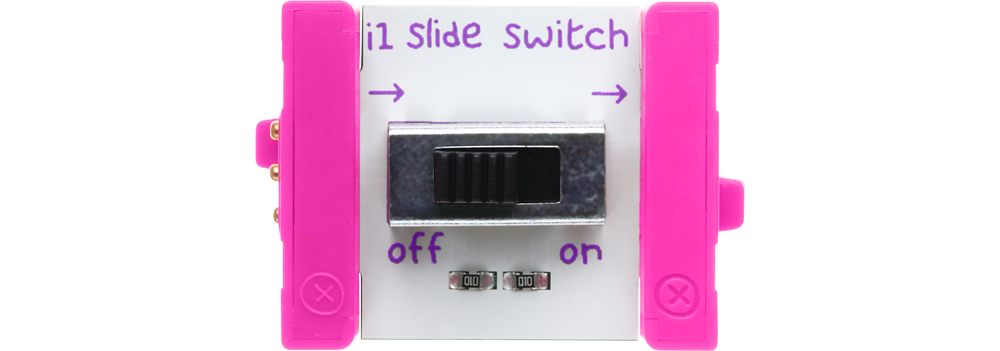

The slide switch is a small and convenient way to turn your creations on and off. It uses a sturdy plastic lever to switch back and forth. Try it with any of your favorite Bits, like the DC motor or bright LED!

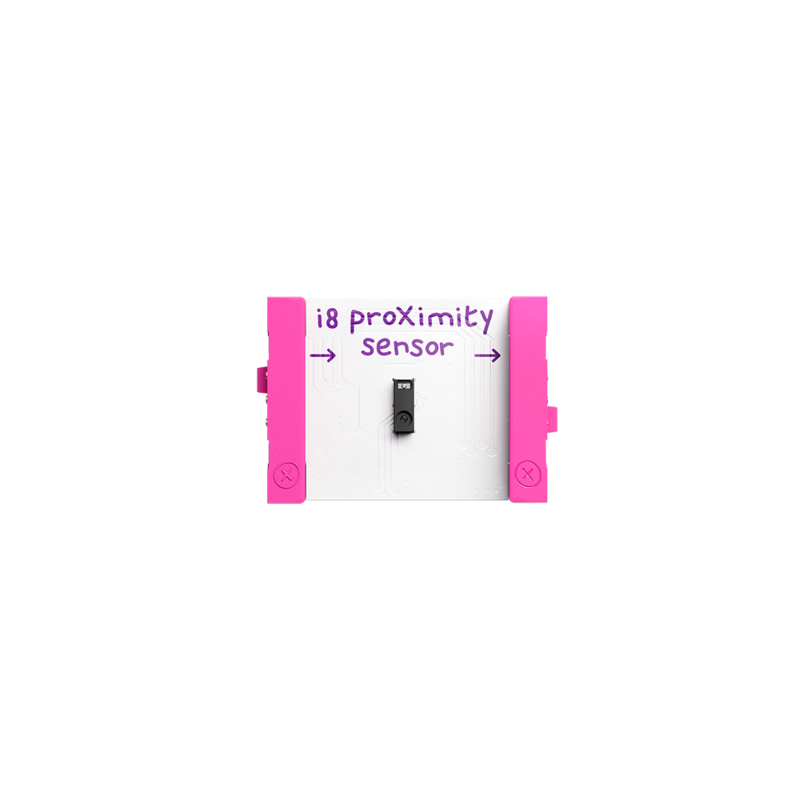

The proximity sensor Bit senses objects in front of it. It can sense if an object is far or near. Try using it to create your own self-navigating car, or a hands-free instrument!

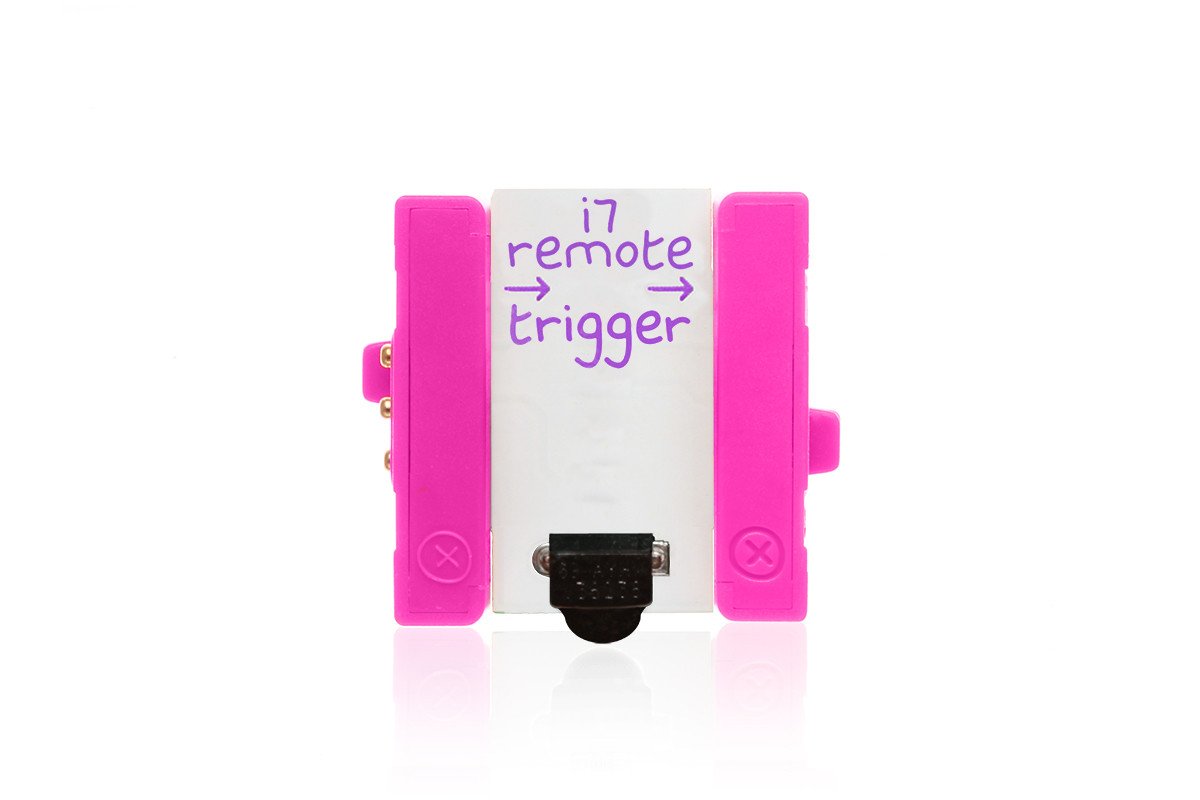

The remote trigger lets you use a common remote control with your Bit. Make your littleBits circuit and point a remote control at the remote trigger’s sensor. Then, press any button on your remote control to activate the Bit. The remote trigger will work with almost any button on a remote that uses infrared light to send signals.

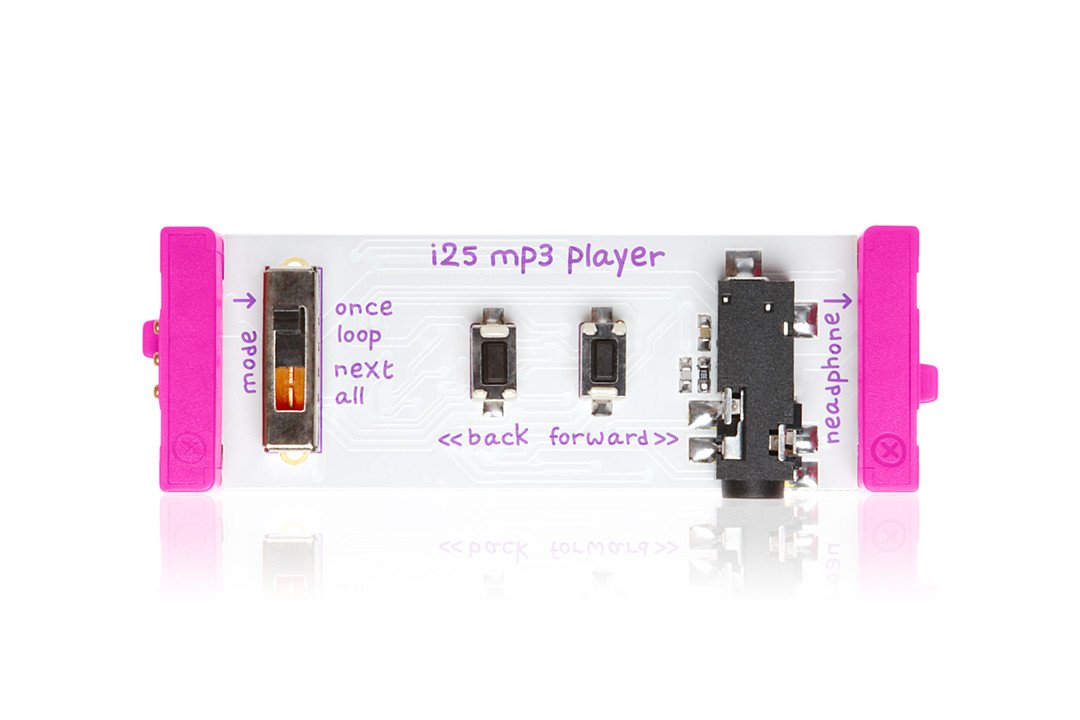

The MP3 player Bit allows you to play your very own MP3 files using littleBits. Sending a signal to the MP3 player can make it work as a media player, sampler, or looper. Just load the MP3 files you want onto the provided SD card and you'll have music and sound effects in your next littleBits invention in no time.

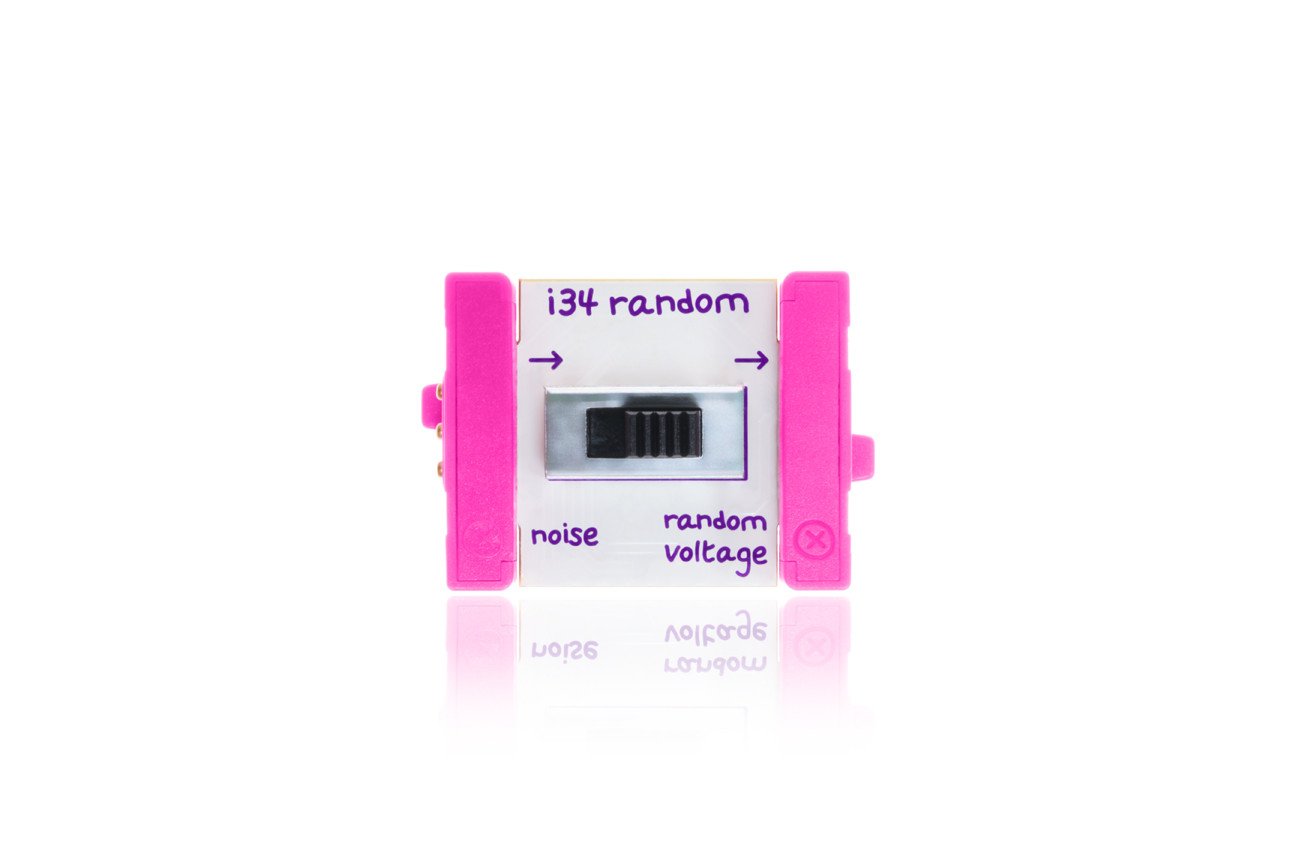

The random Bit creates unpredictable voltages and trigger signals to create complex sound sequences. It can either produce white noise, or it can control oscillators to make them play random pitches.
The delay Bit takes incoming audio and repeats it, like an echo. Delays can be long and spacey, like shouting into the Grand Canyon, or loud and crazy.

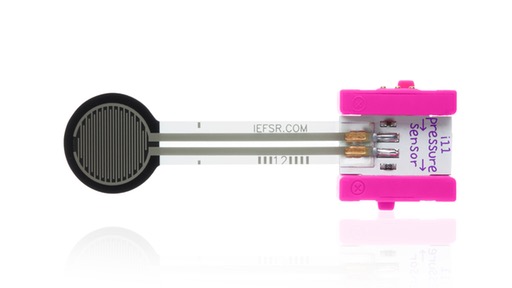

The pressure sensor is a touch-activated Bit - give its pad a little squeeze to activate it. The more pressure you apply, the more signal it sends out. Put it in front of a vibration motor to control how much it shakes!

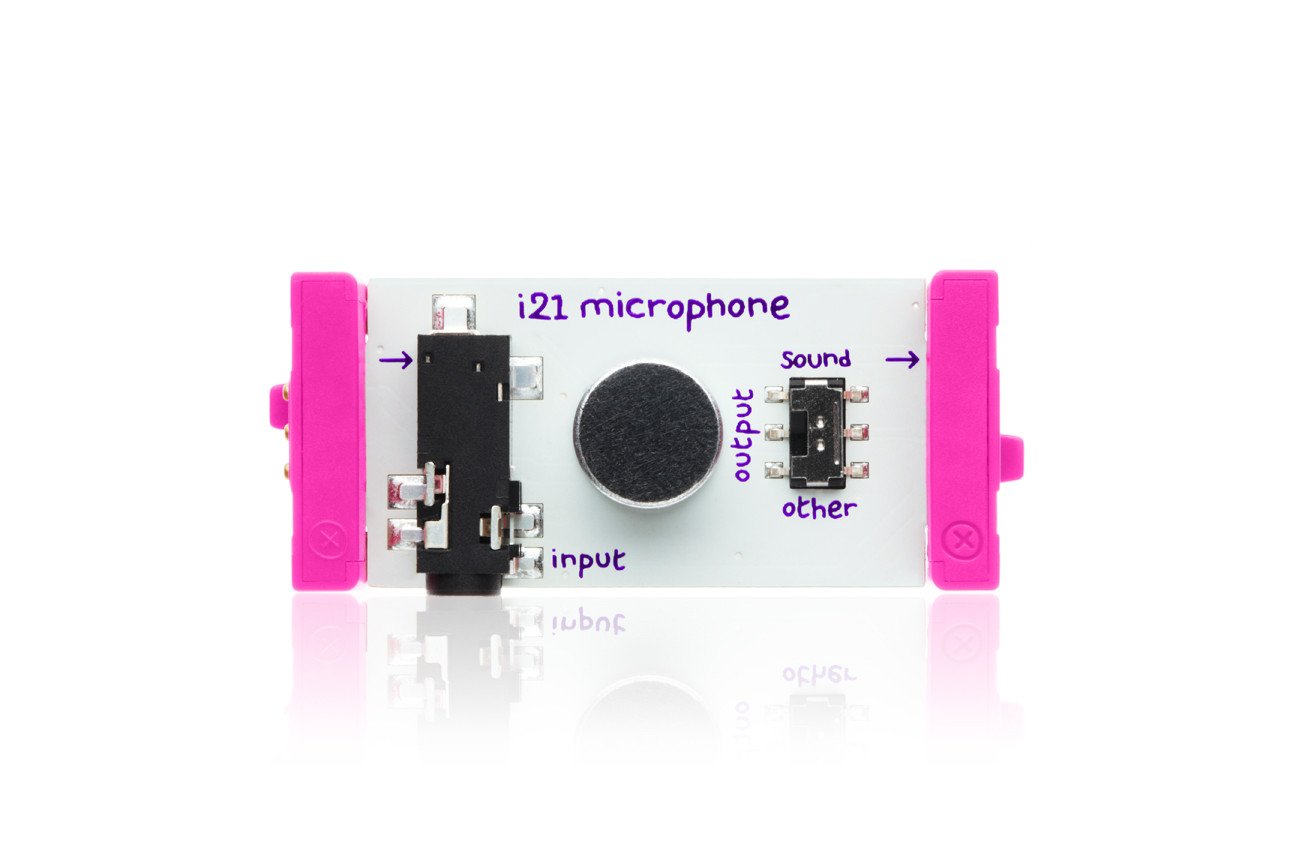

You can use the microphone Bit like a small megaphone, or even to turn sounds into light or motion! This Bit translates sounds into a language that littleBits circuits can understand.

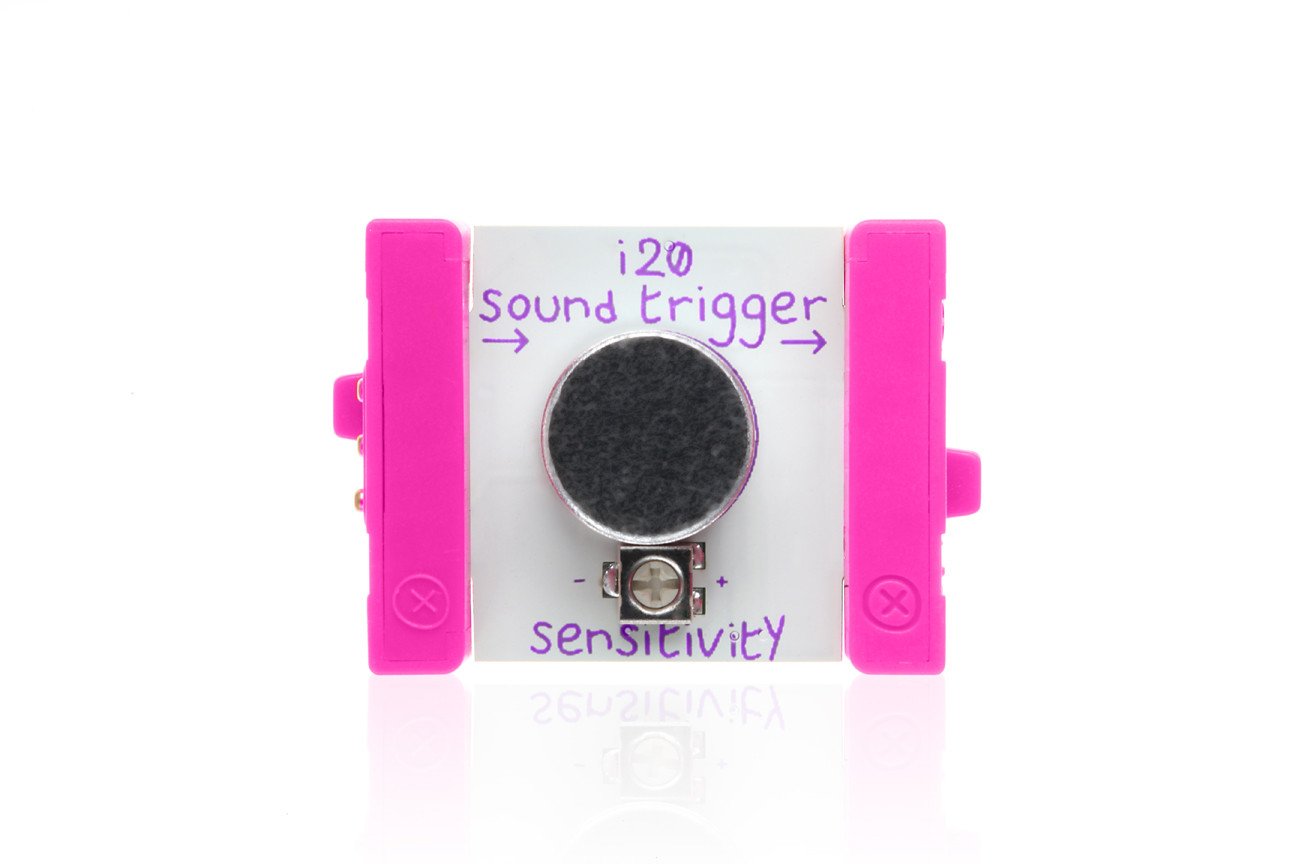

Use this Bit to control your circuits with sound! The sound trigger listens to the noise level in your room, and sends an ON signal when it gets over a certain level. Try it with a Bit that lights up to create a circuit that responds to the snap of your fingers.
